If a patient has an embolus that travels from a vertebral artery, what area of the brain could be injured?

re) used, and what precautions are needed?
Answer:

The brainstem, cerebellum or occipital lobe.

Description:

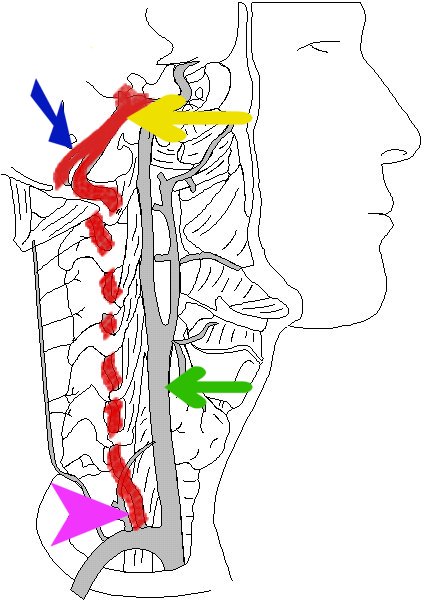

The brain receives arterial blood from the aorta via 4 vessels (2 carotid and 2 vertebral).  The right and left common carotid arteries carry blood to the middle and anterior cerebrum.  The two vertebral arteries extend from the left and right subclavian arteries as shown in diagram 1.



Diagram 1

The right vertebral artery is shown in red as it leaves the right subclavian artery (pink arrow).

The left vertebral artery travels up the left side and merges with the right vertebral artery (blue arrow).

The right and left vertebral arteries merge to one common artery called the basilar artery (yellow arrow).

The right common carotid artery (green arrow) extends upward from the innominate artery.

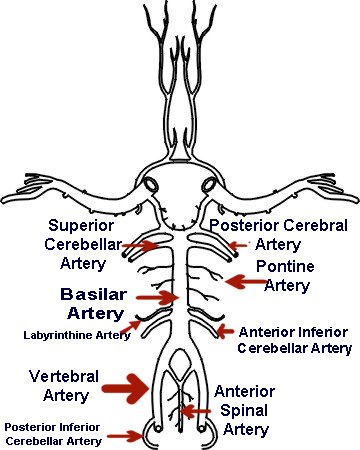

The left and right vertebral arteries merge at the posterior base of the brain to become the basilar artery.  Branches from the basilar artery supply the cerebellum, posterior cerebrum and brainstem (diagram 2).

The pontine branches provide blood flow to the brainstem, which controls our vital centres for breathing and the autonomic nervous system.  Damage to the pons area can cause a loss of the sympathetic control of the pupils (the sympathetic response of the pupils is dilation), resulting in pinpoint fixed pupils.  Infarction to this area of the brain can prevent the transmission of messages to and from the brain.  This is referred to as "Locked-in" syndrome...the patient is awake, but unable to respond (similar to a very high quadriplegia).


Diagram 2

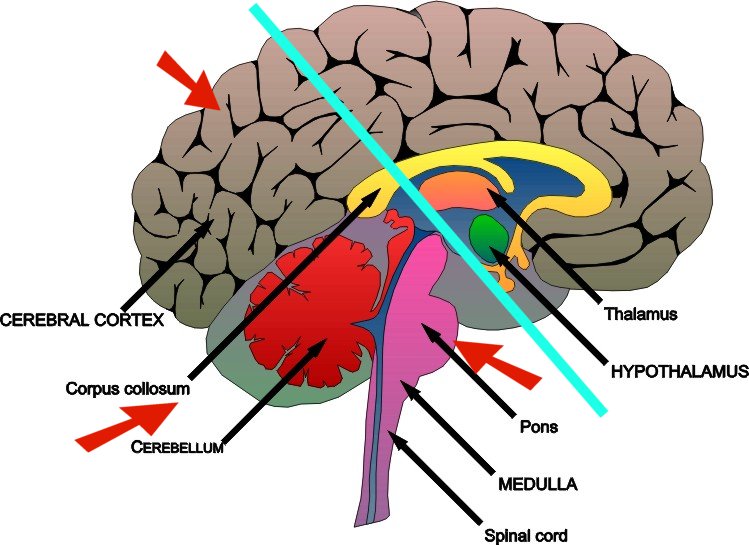

The posterior cerebral artery supplies the posterior cerebrum (occipital lobe - vision), the cerebellar branches supply the cerebellum (balance, coordination of movements) and the pontine branches supply the brainstem.  The anterior spinal artery supplies the front of the spinal cord.  The posterior spinal artery (not shown) extends from the back of the vertebral artery just below the anterior spinal artery bifurcation.  The posterior cerebrum, cerebellum and brainstem is shown by the arrows, below the light blue line in diagram 3.


Diagram 3

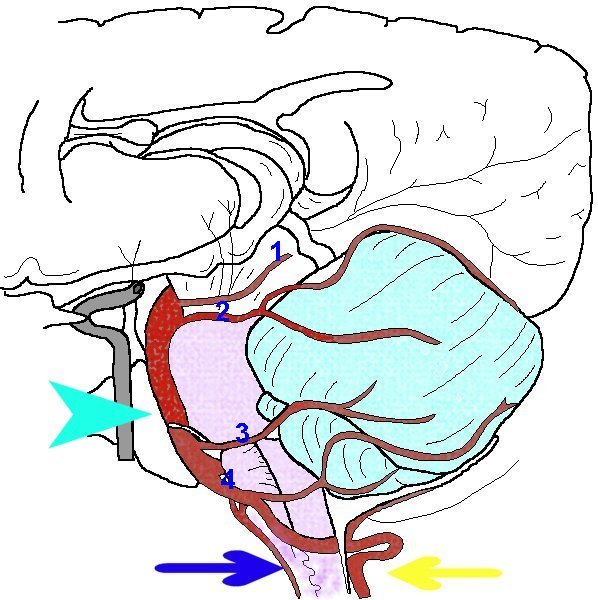

Diagram 4 shows a lateral view of the left vertebral artery (yellow arrow).  The anterior spinal artery is identified by the dark blue arrow, and the basilar artery by the light blue arrow.   The posterior cerebral artery (labeled 1) is shown as it extends towards the posterior cerebrum.  The left occipital lobe is supplied by the left posterior cerebral artery and interprets visual stimuli from the right visual field of both eyes (e.g. images to the temporal field of the right eye and the nasal field of the left eye) .

The superior cerebellar artery (labeled 2), the anterior inferior cerebellar artery (labeled 3) and the posterior inferior cerebellar artery (labeled 4) collectively  provide blood flow to the cerebellum.  Injury to the left hemisphere of the cerebellum causes impaired coordination of left sided movements (the right cerebral hemisphere "tells" the  left side to move, but the left side of the cerebellum makes the left sided movement smooth and coordinated.


Diagram 4

Brenda Morgan: December 17, 1990


References:

Diamond, M., Scheibel, A., and Elson, L. (1985).  The Human Brain Coloring Book.  HarperPerennial: New York. p 9.2.
